Train Tech Station (Modern) Scenic Sound Module TTSCS2 Multi Scale

Station (Modern) Scenic Sound Module

Bring life to any layout!

Sounds can really bring a layout to life and these modules make it so easy; just connect two wires to the nearest power source, hide the module, and turn it on.

Features:

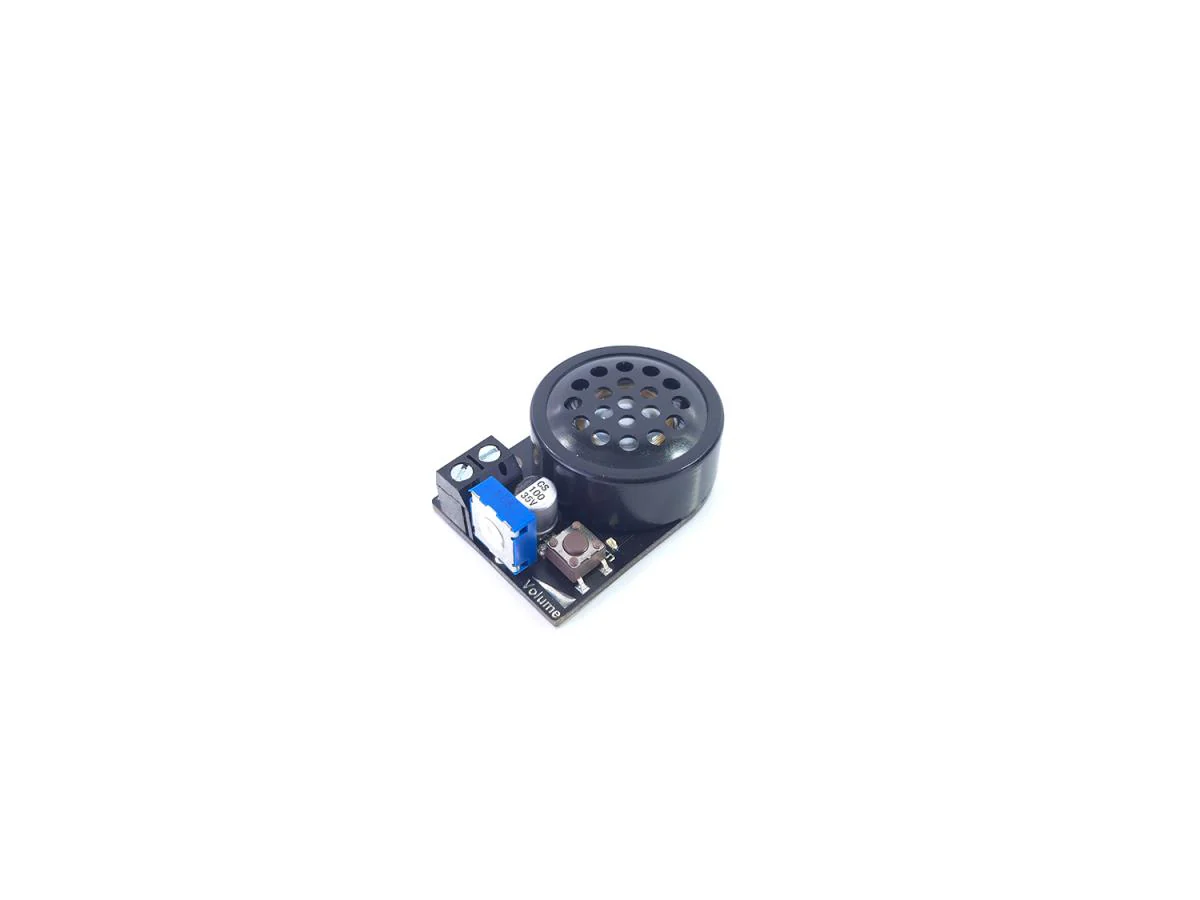

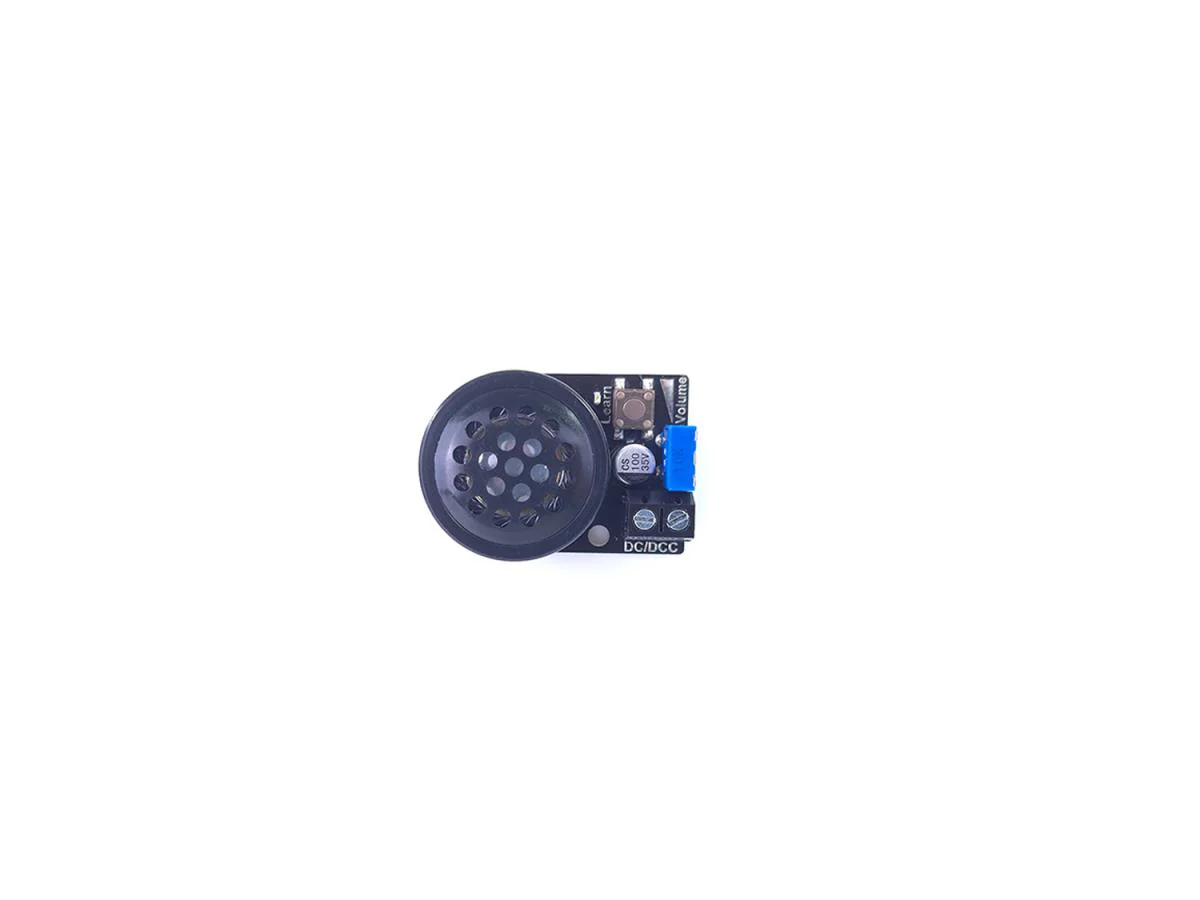

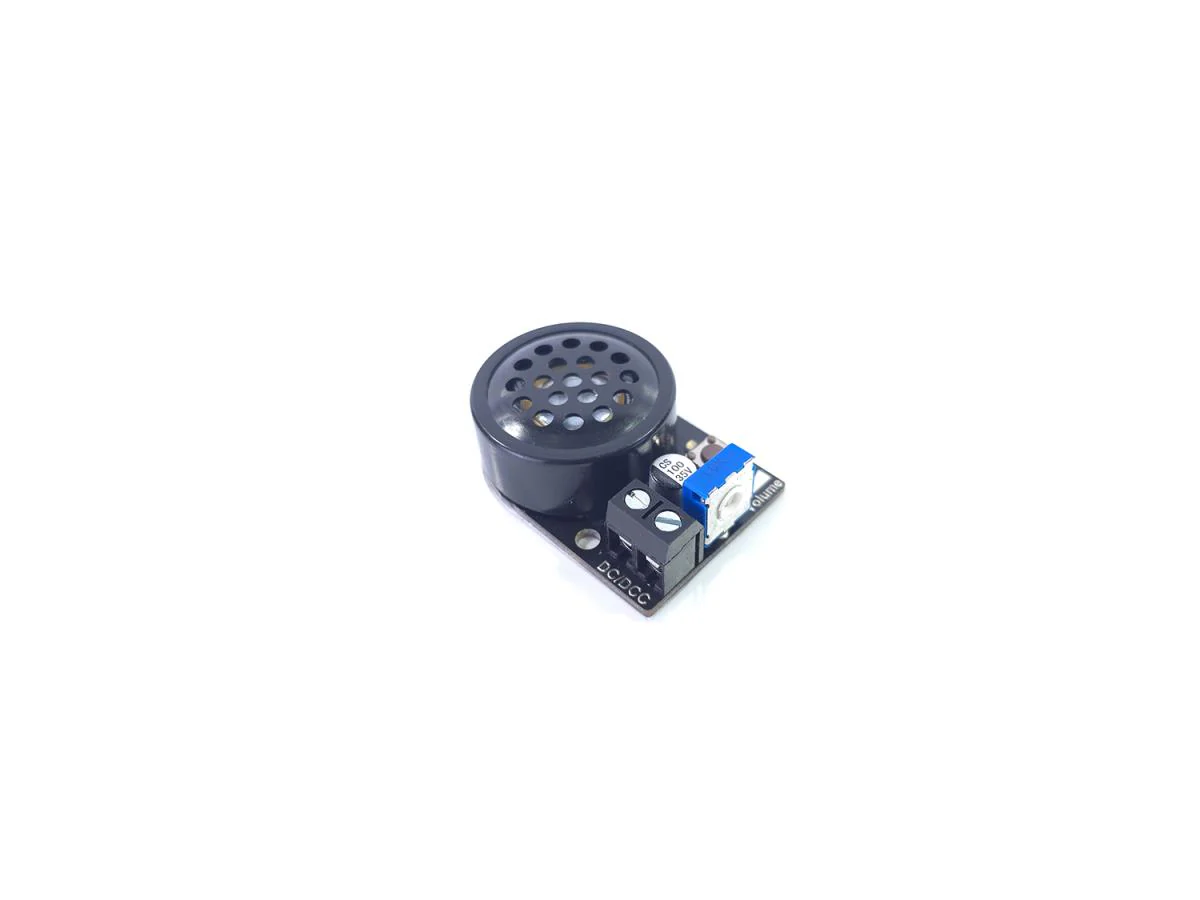

• Compact sound module with built-in loudspeaker
• Real natural sounds specially recorded for these modules
• Easy connections - Just two screw terminals for power input
• Power from a 9-16V smooth DC supply for natural random sounds
• Power from a DCC bus or feed for control of each sound by DCC address
• Fits inside a model or under the baseboard
• Built-in adjustable volume control

When powered by DC:

Modules play an appropriate background sound with individual sounds played randomly.

When powered by DCC:

Modules can play randomly as above, or individual sounds can be played on command by DCC accessory; e.g.Point throw played as a point changes, signal rodding etc.

Sounds on this module include:

• Station Announcements
• Modern DMU Departing
• Diesel Horn
• Guard's whistle
• Heritage Diesel Start-up
• Modern Doors (Opening/Closing)
• EMU Departing

Measurements


Length42mm
Width29mm
Height13mm
Speaker Diameter (√ò)23mm
